Alukap-SS High Wall Bar (134mm | 58mm x 3,000mm)
Ā£366.34
SKU
AKSS510B
Product Features:
- Thickness: 134mm
- Bar Size: 58mm x 3,000mm
- Colour: Brown
- Immense Spanning capabilities
- Superior Weather Resistance
- Suits any thickness of glass or Axiome Sheet
- Reduces Installation time due to installation friendly design

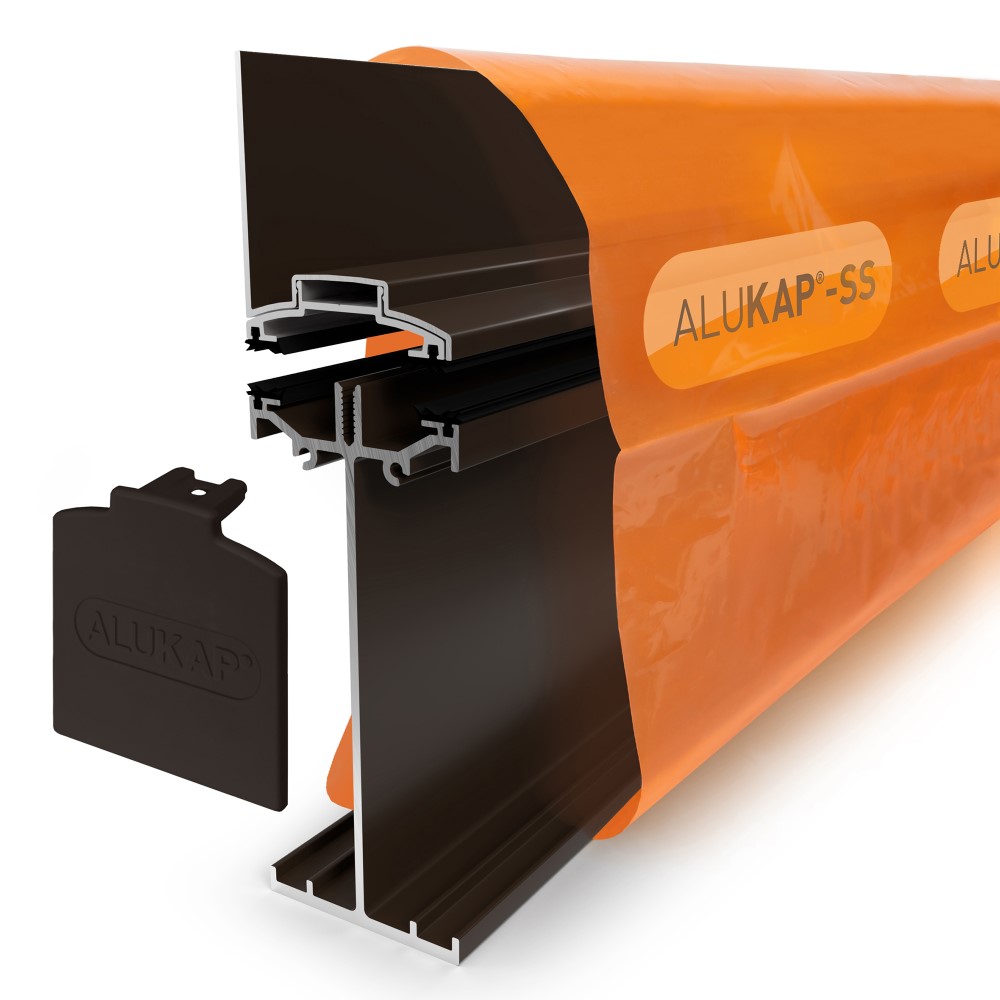

This 58mm x 3,000mm, 134mm thick, Brown AlukapĀ®-SS High Span Wall Bar provides the perfect glazing finish on any roof where the end rafter abuts a rising wall. The AlukapĀ®-SS Wall Bar integral upstand provides a perfect waterproofing upstand and an excellent detail for lead flashing over. The AlukapĀ®-SS High Span Bar provides an excellent all-aluminium structural beam for unsupported glazing spans up to 6m depending on glazing material and glazing bar centres. AlukapĀ®-SS suits glass or AxiomeĀ® polycarbonate of any thickness. The all-aluminium AlukapĀ®-SS system provides a robust, long-lasting aesthetically pleasing finish to any residential, public, or commercial canopy or roofing structure. Estimated load span advice is available upon request, although users are advised to obtain their independent advice to verify the span calculations are correct for their site-specific application.
SKU | AKSS510B |
---|---|
Storage Advice | All of our products should be stored flat, out of direct sunlight and all courier packaging must be immediately removed. |
Brand Colour | Brown |
Colour | Brown |
Brand | Clear Amber |
Thickness | 134mm |
Width | 58mm |
Length | 3,000mm |
Material | Aluminium |
Pack Size | 1 |
